Powerful cleaners for every hydraulic application

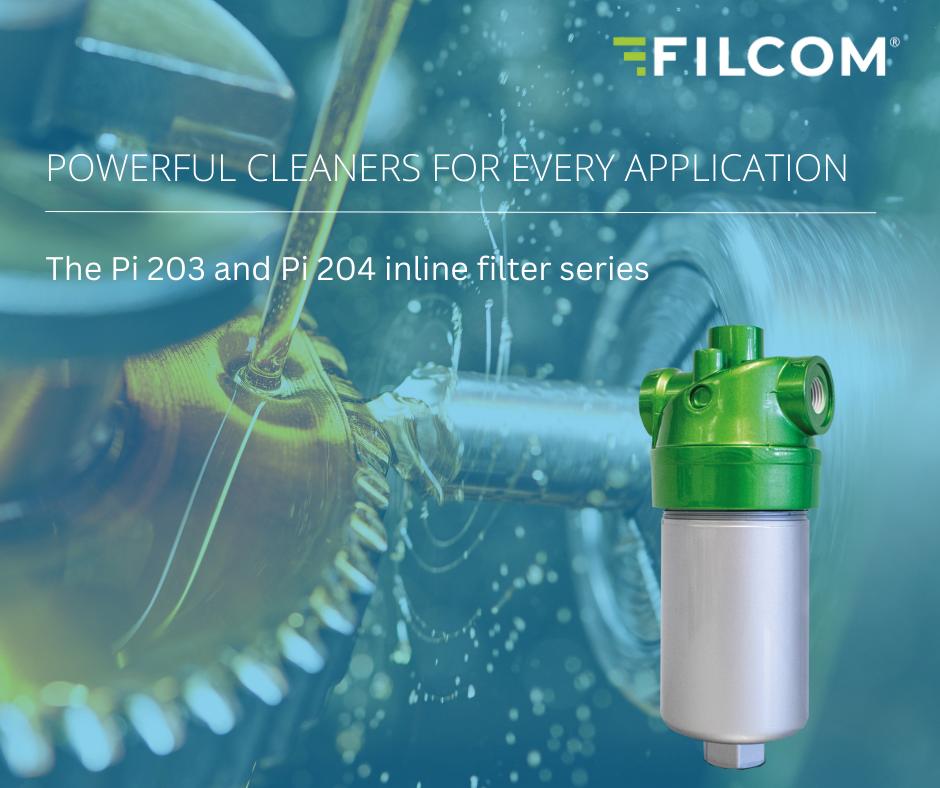

This is the new Pi 203 and Pi 204 inline filter series from Filtration Group IndustrialFiltration Group Industrial

Pi 203 – INLINE FILTER FOR MOVING SCENARIES

It is the perfect cleaner in mobile hydraulic applications: With its compact design and comparatively low weight – the lightest Pi 203 weighs less than one kilogram – it reliably filters hydraulic fluids in the flow rate range from 40 to 110 l/min.

Pi 204 – ROBUST DESIGN FOR HIGH PERFORMANCE OFF THE STAND

It unfolds its qualities in stationary hydraulic applications: Its robust design ensures unwavering performance in any environment. The Pi 204 ensures accurate dirt separation for hydraulic fluids in the flow rate range from 40 to 110 l/min.

COMMON CHARACTERISTICS OF BOTH SERIES

• Constant high performance at an operating pressure of up to 100 bar
• Optionally equipped with optical, electrical or electronic maintenance indicator
• guaranteed filtration rates according to multipass test ISO 16889
• available with all common filter elements, of course also with patented PulseShieldTM technology

FG PulseShieldTM

THE PATENT FOR STABLE SEPARATION PERFORMANCE

With its patented PulseShieldTM technology, Filtration Group Industrial has developed an effective solution for maintaining optimum filter performance throughout its service life. The pleat star is pressed against the inner frame by the shrunk-on outer shell and thus mechanically fixed. Blocking of the pleats is thus prevented and the full filter area is available throughout the entire life cycle.

UNBEATABLE ADVANTAGES

• Complete utilization of the inserted filter surface
• Improved separation efficiency over the entire service life
• Reduced pressure drop
• patented technology

Are you also interested in our powerful cleaners for hydraulic applications? Then please contact the FILCOM GmbH team. We will convince you with the unbeatable advantages of the new series.
