FG Dust filter cartridges for use in stone crushers

One of Filtration Group Industrial’s customers is a global company and one of the top 10 industrial companies in Scandinavia. In one of its divisions, it is a leading manufacturer of products used in mining and construction. These include mobile rock crushers. These are used in mining and road construction to destroy and crush rocks and stone formations. Since this stone processing produces many small stones as well as rock dust, this highly aggressive rock dust must be extracted and the air cleaned. Otherwise, there would be severe damage to machinery, equipment and health hazards to the operators. Filtration Group Industrial uses filter elements of type 852 625 Ti 15-0.8 for this application.

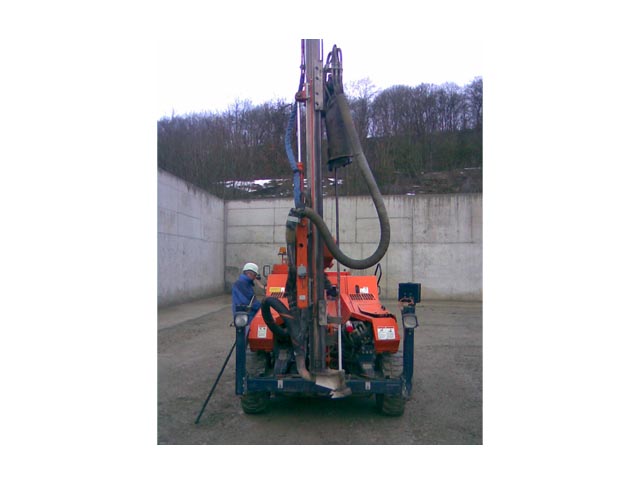

Challenge

Filtration Group Industrial dust filter elements with open convolution for the extraction of rock dust with very high dust loading. Due to the work of rock crushers in the open air as well as in tunnels or underground, the dust to be extracted is very aggressive and humid due to dew point undershoots. There is a risk of filter damage due to sometimes sharp-edged small stones. The cleaning pressures can also vary greatly due to the mobile technology. Filtration Group dust filter elements provide high mechanical strength to ensure optimum use of the mobile equipment.

Technical data

Filter elements: 6 x 852 625 Ti 15-0.8
Filter material: Ti 15 – optimised polyester fleece with a filter area of 0.8 m² per element
Installation on the raw gas side via a threaded connection RD 60 x 4 on the filter plate
Outer diameter cylindrical 115 mm
Length: 600 mm
Banderole for higher strength

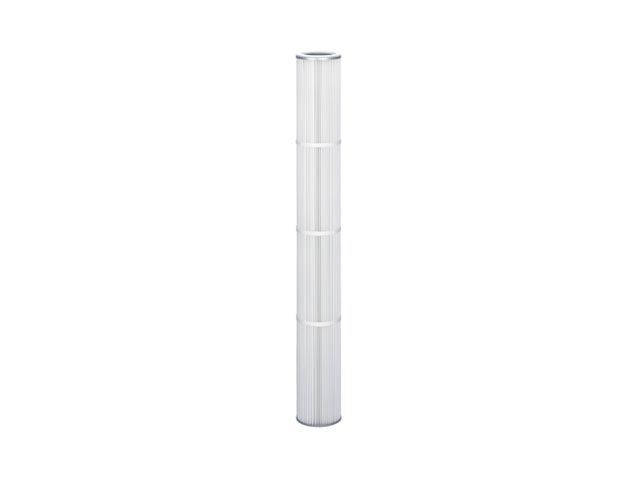

Solution statement

Filtration Group Industrial has chosen cylindrical filter elements with an open pleat for this application, as there is a very high dust loading here
Use of Ti 15, a very smooth and easily cleanable filter material with a high mechanical resistance
Filter material can also be used very well in wet conditions, as it is an optimized polyester material
Long service-life due to the surface filtration used
Greater strength during the cleaning process and the pressure fluctuations present here through the use of a banderole

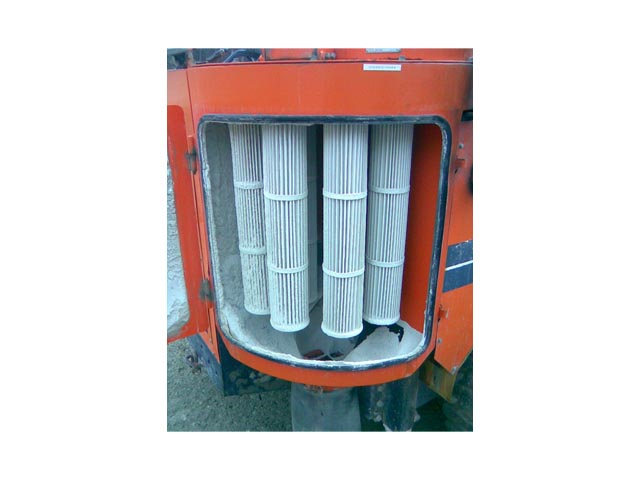

Customer value

Reduced risk of blocking due to high humidity due to open pleat
Mechanical stabilisation of the filter elements during cleaning by the use of a band
Increased service life due to the use of Ti 15 filter material with open pleat and band and associated use of surface filtration
Cost savings by extending the service life and reducing set-up times
Faster assembly due to the use of RD 60 thread
