Screw Compressors CSD/CSDX Series

OUTSIDE

• Predecessor systems can be easily replaced by largely identical external dimensions
• The plants are easily accessible due to split control cabinet doors
• Built-on dryers are available with front and rear doors

INSIDE

• Revised compressor blocks
• Power transmission by means of gear pair
• Highest possible efficiency class of drive motors and drive systems (IE4, IE5, IES2)
• Speed-controlled EC fan motors
• WRG option with secondary Electronic Thermal Management (ETM)
• Maintenance-free stainless steel piping in the plants
• Optimized valves: inlet valve, minimum pressure check valve (MDRV) with pressure indicator/fuse protection
• Reduced coolant charge in systems with add-on refrigeration dryer

TECHNICAL DATA CSD / CSDX

• Flow rate: CSD: 1.93 to 14.7 m³/min I CSDX: 3.5 to 19.5 m³/min
• Pressure stages: YD: 6.0 / 7.5 / 8.5 / 10 / 12 / 15 bar (g) (except CSD 90) I SFC: 8.5 / 12.0 / 15.0 bar (g)
• Low pressure: Additional LP variant with 5.0 bar (g)
• Engine power: 45 / 55 / 75 / 90 / 110 kW

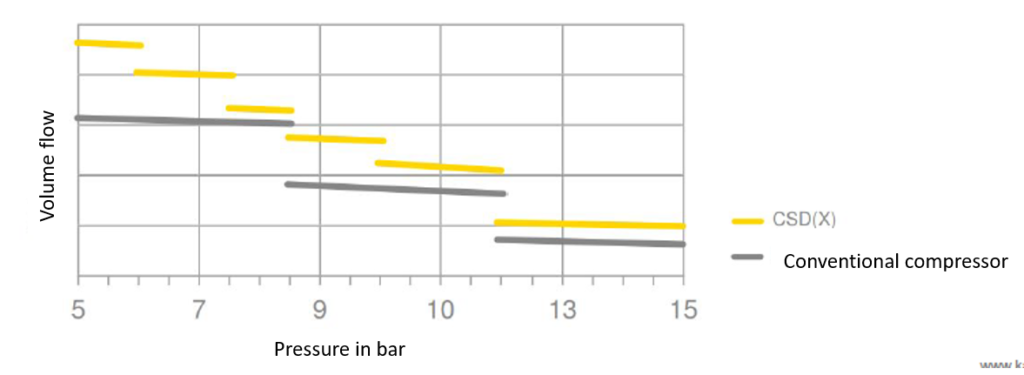

MORE PRESSURE VARIANTS WITH INCREASED VOLUME FLOWS

• Up to 3 additional pressure stages per system type (6 in total)
• Volume flow gains between 5 % and 20 % (especially pronounced in the range of the new pressure stages – intermediate pressures)

OUTSTANDING LOW SPECIFIC POWER

Background:

• Adapted SIGMA profile for higher efficiency
• “Flat” block curve enables multiple efficient operating point
• Always the highest efficiency class in the drive
• Speed-controlled fan regulates final compression temperature (VET) at low temperatures via SIGMA CONTROL 2

SERVICE-FRIENDLY

• Robust, reliable and virtually maintenance-free drive train
• “Victaulic” sealing at the compressed air outlet (easy handling)
• Oil drain valves on both sides of the compressor
• No maintenance intervals for the gears (easy disassembly in case of repair)
• Motor bearing on drive side not required as maintenance part
• No service necessary on the fan unit
• Accessibility to oil filler neck, oil level indicator and pressure gauge from the rear side

SIGMA CONTROL 2

• Unique, energy-saving operating modes (Dynamic, Vario, Quadro)
• Integrated web server for access from the local network
• Easy and secure communication with SAM 4.0 via SIGMA NETWORK
• Storage of operating data (SD card)
• Various options for communication with higher-level systems
• RFID-based access control

… up to 96 % recoverable as warm air e.g. heating of rooms / halls, drying processes, door air curtains

… up to 76 % recoverable as hot water e.g. feeding central heating, process water, drinking water applications

PROPERTIES

• WRG option with second ETM valve
• Adjustable VET for water temperature adjustment via SIGMA CONTROL 2
• Switching on and off via external contact
• Stainless steel tubes instead of hose lines

ADVANTAGES

• Low energy costs
• Flexibility with WRG
• Low service costs
• Higher operational reliability

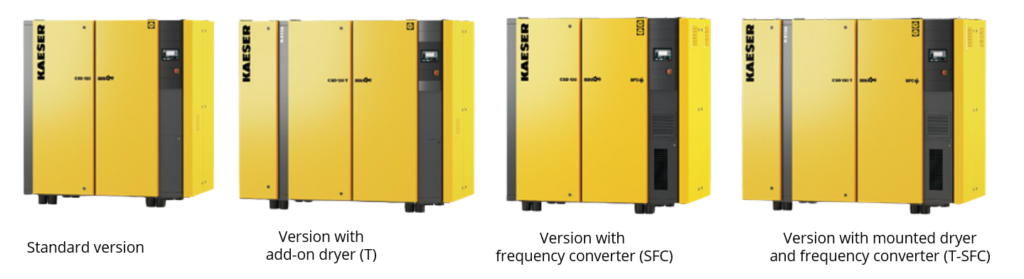

TYPES

• CSD 90/110/130
• CSDX 145/175/200 (200 only T / T-SFC)

APPLICATIONS

• SteuerControl, blowing, instrument air
• Process / conveying air
• Drive air
• Pressure assisted tank draining
• Packaging processes and forming air
• Blasting, painting, powder coating

TYPICAL INDUSTRIES
