Car workshops

PERFECTLY STYLED COMPRESSED AIR

How does it work? An optimum supply of compressed air plays a major role – whether you’re a hobby mechanic or a professional auto repair shop. Nothing is worse than bubbles forming when painting cars or a car lift without power, or a compressed air screwdriver that runs out of air in no time. This will definitely not happen with a compressed air supply from KAESER.

The specifications for a well-functioning compressed air supply are always the same – both for a hobbyist’s backyard garage and for a certified master workshop. Reliability and economy always have priority. The exact amount of compressed air required is supplied by oil-free piston compressors from KAESER. These are driven by a speed-controlled motor. A reliable employee – definitely the KAESER  i.Comp family.

TECHNICAL DETAILS

• Constant pressure up to 11 bar
• Volume flow from 404 to 570 l/min
• 80 l compressed air tank
• Max. sound pressure level 65.7 dB(A)
• Continuous operation due to unrestricted switching frequency

SUITABLE PRODUCTS

• Serie i.Comp 8 und 9

Flyer “Series i.Comp 8/9”

ON HAND AS A PROFESSIONAL

This is how KAESER i.Comp series compressors can be described. Constant switching frequency, effective fans and efficient cooling air flow characterize these units. Even at 500 wheels, the compressors never run out of breath.

A silent companion – DEFINITV. The piston compressor from the i.Comp family shines with a sound pressure level of max. 65.7 dB(A). And it is definitely undemanding, because it only requires a footprint of less than 1 m², making it extremely space-saving. And for absolute shine, it definitely contributes its best during painting as well – because the i.Comp family is absolutely oil-free.

Last but not least: A BAFA subsidy is available on top. The German Federal Office of Economics and Export Control will cover up to 40% of the purchase costs for the i.Comp family.

• Zur BAFA-Förderung

ECONOMICAL COMPRESSED AIR SOLUTIONS FOR THE WORKSHOP

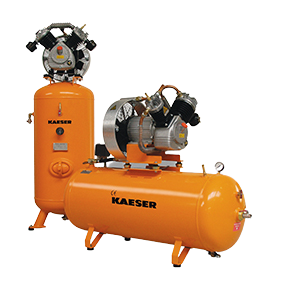

Even if the demand for compressed air in your workshop is not continuous or is only required in small quantities, the cost-effective solutions from KAESER Compressors are the right choice. The stationary piston compressors of the KAESER EUROCOMP series (EPC) offer economical solutions in limited space.

Does low compressed air consumption necessarily mean high costs per cubic meter?

No not at all. Rather, it comes down to finding the right solution for your specific compressed air needs. Many companies rely on a stationary compressed air supply, but the demand is not constant and around the clock. For such applications, KAESER EUROCOMP reciprocating compressors are extremely efficient solutions.

FOR ENERGY-EFFICIENT, COST-EFFECTIVE AND ENVIRONMENTALLY FRIENDLY COMPRESSED AIR GENERATION

• Quality compressor block of the KAESER brand, “made in Germany
• High-quality materials and precise assembly ensure high air performance and a long service life
• Efficient aluminum ring profile aftercooler keeps compressed air temperature low while providing effective contact protection
• Motor is directly coupled to the compressor block to ensure optimized efficiency and low operating costs
• Optionally available with retrofittable sound insulation hoods; these reduce the already not excessively high sound pressure level by up to 10 dB(A) thanks to low speeds
• Double vibration isolation between the compressor unit and the pressure vessel as well as between the pressure vessel and the installation floor ensures vibration-free operation of the units
• In confined spaces, the versions with upright air receiver provide a reliable supply
• Delivery ready for connection

TECHNICAL DATA

• Suction volume of up to 1,000 l/min with a required footprint of significantly less than 1m²
• EPC compressors cover a suction volume range from 150 to 1,500 l/min at maximum operating overpressures of 10 bar or up to 1,000 l/min at 15 bar.
• Depending on requirements, models with 90-, 250-, 350- and 500-liter compressed air receivers are available for selection

Learn more

ATTENTION – NEW!

From now on, KAESER workshop compressors of the EPC series are also BAFA-eligible!

This concerns some 2-stage systems of the KAESER EUROCOMP series (horizontal and vertical), which receive a BAFA subsidy until 31.12.2023 for the time being:

• EPC 420-2-…. (horizontal / vertical)
• EPC 550-2-… (horizontal / vertical)
• EPC 750-2-… (horizontal / vertical)
• EPC 1000-2-… (horizontal / vertical)

COMPACT POWER, BIG COMPRESSED AIR

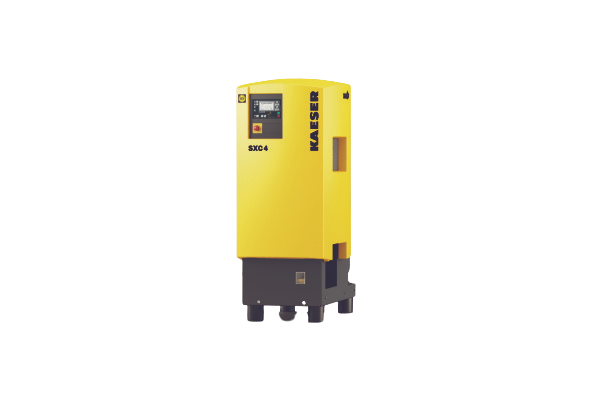

The KAESER SXC compact station from KAESER Compressors offers an efficient solution for on-demand compressed air generation that is quiet, cost and space efficient. Compared to conventional piston compressors, the KAESER SXC enables annual energy savings of up to 800 euros.

Many craft businesses still use an older piston compressor that reliably delivers compressed air but often incurs high energy costs. In addition, these older models take up a lot of space and are noisy. As a result, there has been an increased demand for air compressors that are compact, reliable, energy efficient and quiet. The KAESER SXC series meets all these requirements in an outstanding way.

EFFICIENCY IN MINI FORMAT!

• attractive, corrosion-free housing made of rotationally sintered polyethylene
• Screw compressor with integrated refrigerant dryer, space-saving pressure vessel and electronically level-controlled condensate drain
• Condensate is discharged from the pressure vessel and refrigeration dryer reliably and without energy loss
• Powerful and quiet screw compressor with an optimized “Sigma profile” that allows more compressed air at lower energy consumption

TECHNICAL DATA

• available with drive powers from 2.2 to 5.5 kW and volume flows from 0.26 to 0.8 m³/min (at 8 bar)
• despite impressive performance, the SXC series models take up only 0.62 square meters of floor space, as they are only about as wide as a washing machine
• efficient start-stop control of the Sigma Control 2 control system ensures reliable and economically optimized operation
• Sigma Control 2 enables efficient communication thanks to the plain text display
• continuous monitoring of the SXC unit to ensure safe operation

Learn more

THE SMALL ONES THAT MAKE A BIG DIFFERENCE

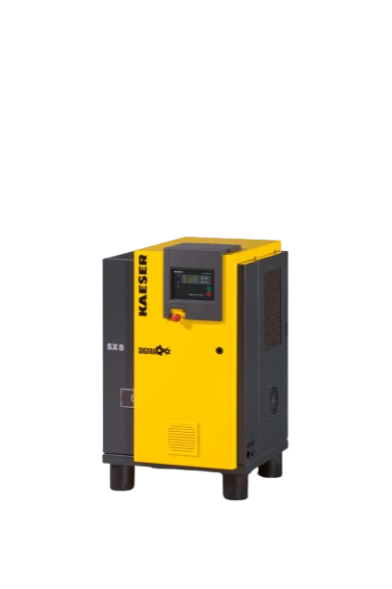

Even when space is at a premium and compressed air volumes are small, screw compressors achieve an unbeatable combination of economy, reliability and environmental awareness. The screw compressors of the proven KAESER SX series set new standards in these areas.

NEW STANDARDS FOR EFFICIENCY AND SPACE SAVINGS

• KAESER SX8 series screw compressors generate an impressive 0.8 m³ of compressed air (at 8 bar) in a footprint of just 0.37 m².
• The SX 3, 4, 6 and 8 models in this series cover a delivery volume range of 0.33 to 0.8 m³/min and have drive powers of 2.2 to 5.5 kW.
• Designed for continuous industrial use with low sound pressure level (only 60 to 64 dB(A) depending on the model).
• specific power improved by up to 9 percent compared to predecessor models
• significantly reduced space requirement (0.37 m² for standard models)

TECHNICAL DATA

• newly developed KAESER screw compressor blocks with aerodynamically optimized “Sigma profile”
• High efficiency of the compressor block is complemented by a sophisticated cooling system with an innovative dual-flow fan that increases cooling efficiency and reduces noise
• Separate intake of the engine cooling air and the air to be compressed from the environment ensures efficient cooling of the engine and increases compression efficiency
• KAESER Sigma Control basic” control system ensures precise adjustment of the delivery rate to the individual compressed air requirement and automatically monitors operation
• Serviceability: housing cover on the left side can be easily removed to make all service points easily accessible. Maintenance-free drive belts between motor and compressor block ensure optimum power transmission and reduce service costs.
• Different versions available e.g. with integrated, thermally protected KAESER refrigerant dryer (“T” version) as well as KAESER “Aircenter” with refrigerant dryer and 200 l pressure vessel underneath.

Learn more

COMPACT, POWERFUL AND EFFICIENT

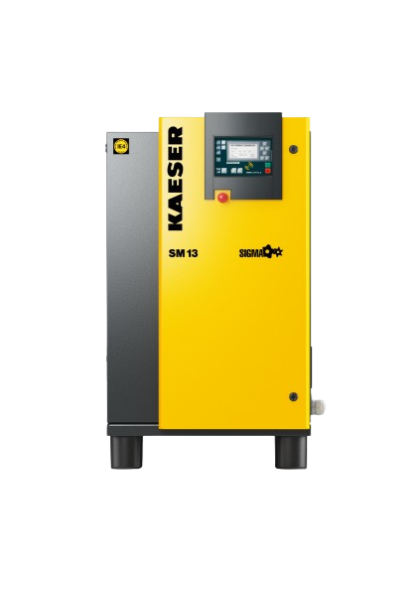

The KAEER SM series screw compressors are the ideal solution for compressed air generation. With their aerodynamically optimized Sigma profile and Sigma Control 2 integrated control, they not only meet expectations in terms of compressed air availability and efficiency, but also offer high performance with low power consumption.

CONVINCING DOWN TO THE LAST DETAIL

• For volume flows from 0.95 m³ to 1.61 m³/min at 8 bar
• Drive powers from 5.5 to 9 kWW
• Optimally designed compressor block, flow-optimized inlet valve and minimized internal pressure losses ensure outstanding performance
• Highly efficient IE4 super-premium efficiency motors (7.5 and 9 kW) enable additional energy savings
• KASER Sigma Control 2 internal control optimizes compressed air generation precisely as needed and provides reliable operational monitoring
• Ethernet interface allows the system to be easily integrated into higher-level control systems; a large display and RFID reader in the control panel simplify communication and security.

TECHNICAL DATA

• For infinitely variable speed control: version with built-in frequency converter (Sigma Frequency Control) for 7.5 kW drive power
• In addition to the stand-alone version, there are “T-versions” SM 10, SM 13 and SM 16 with integrated refrigeration dryer; this space-saving design is also suitable for limited space conditions and ensures quiet operation
• Coolers are located on the outside and are easily accessible for fast and cost-saving service
• Fresh air cooling keeps motor temperature and compressed air outlet temperature low, which increases service life
• Patented dual-flow fan system provides optimum cooling, low noise emission and overall efficient air compression

Learn more
